Exploring The QGIS Expression Engine, Part 1: Getting Values From JSON & HSTORE

This will be the first post of as many as I get around to write about using the QGIS expression engine for both selection and calculations to speed up and automate some analysis.

 If you ever downloaded OpenStreetMap data, you found the tags or other_tags field which is filled with either an hstore field if you used the data from the GeoFabrik download site
they are made up of "key"=>"value" pairs seperated by commas, these are additional attributes contained within one field. It's handy if you want to store different attributes for each row in your data. OpenStreetMap does this because not all features of the same type have all the attributes, for examples not all bars need an attribute of "payment:bitcoin".



So how can we get the data out of that field?

In case we just want to use that field in the selection process, we could use this expression to select businesses that accept bitcoin as payment:



map_get( hstore_to_map(  "other_tags" ),'payment:bitcoin') = 'yes'

These are the businesses in Tel Aviv that accept bitcoin:

Note that there are more points in the image than just points of interest, if you got a national pbf file from GeoFabrik, using hstore_to_map can help you cut it to distinguishable layers.

But what did our code actualy did?

We used the other_tags field and create a map object from it, what that is, is a dictionary that QGIS can find value by key in. Very similar to JSON in that regard, except JSON is a string and also needs to be converted to a QGIS map to be used.

our map object will look like this:

The idea is, converting the string we get from OSM to an object that QGIS can search in easily instead of using some fancy regex to find the right value we want.

A JSON example:

plain JSON field

json_to_map(JSON field)

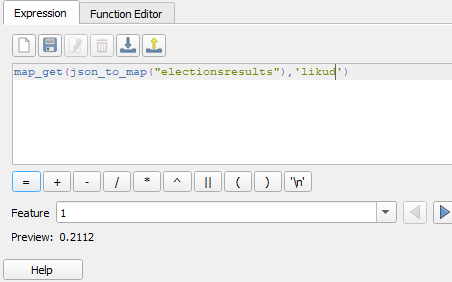

    Using the same method works great on JSON fields as well, in this case I had a layer with a JSON field containing the Israeli Knesset election results, and what I wanted to get was a single party's share of the votes stored in the field.



This method is used to either split up a layer by a field that exists in only some of the extra tags or to add new fields based on these json/hstore fields.
